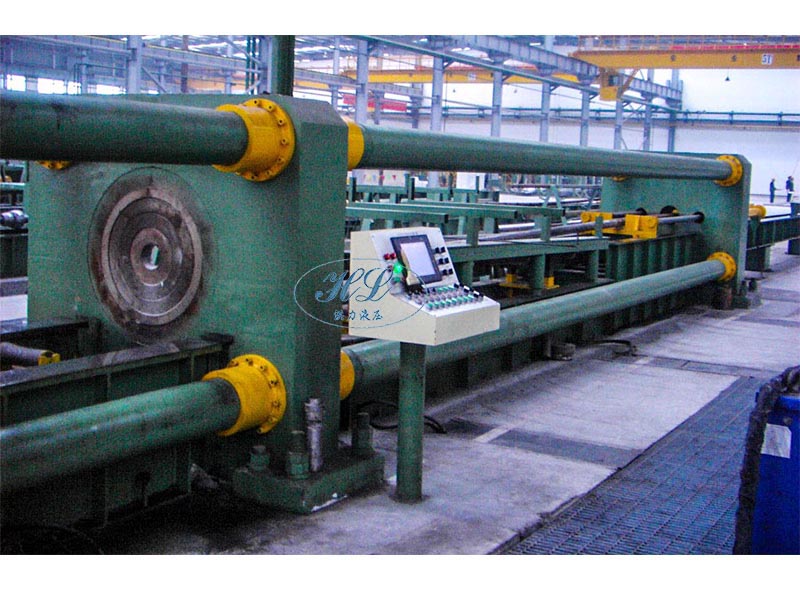

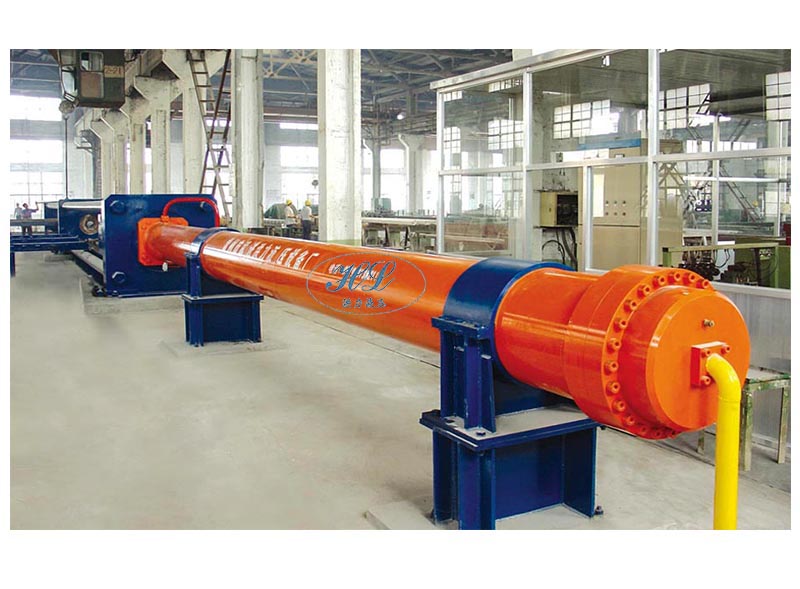

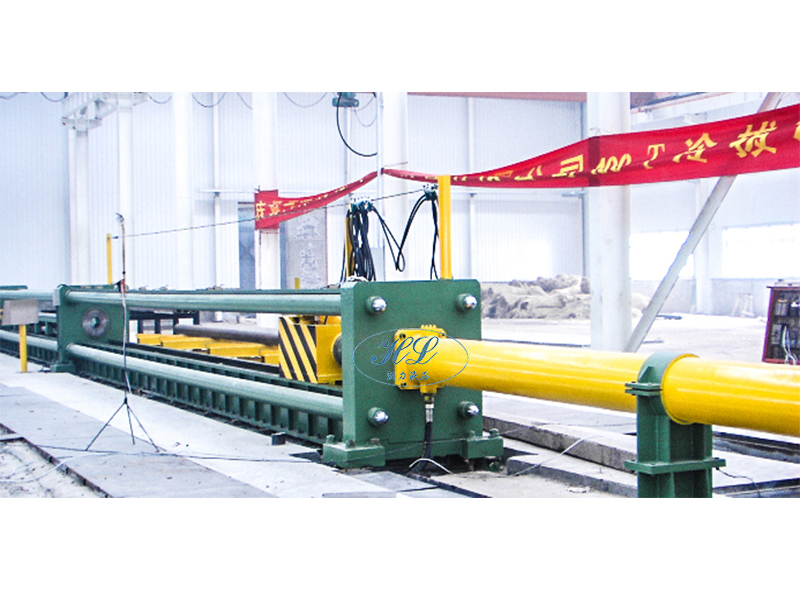

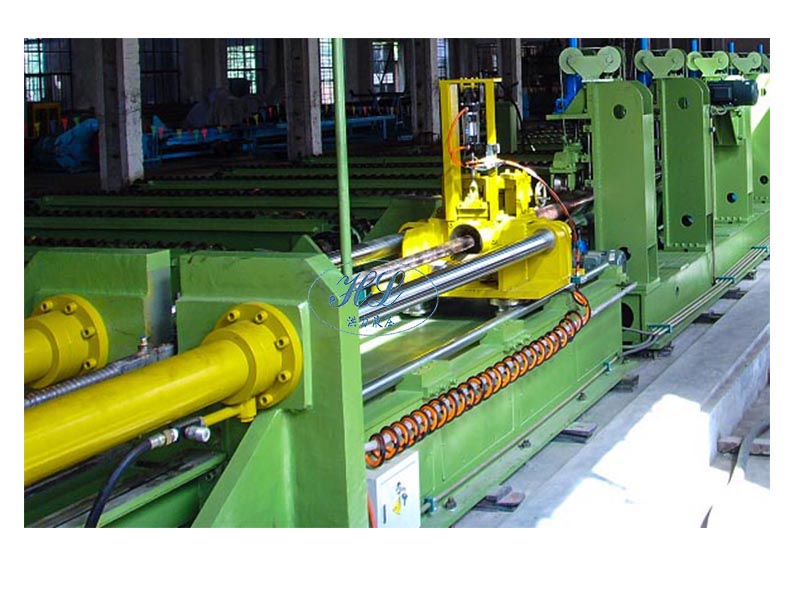

Hydraulic Cold Drawbench
In the early 1990s, we produced the first hydraulic cold drawbench. Compared with the traditional chain drawbench, it has obvious advantages such as large drawing force, high working efficiency, low noise and stable operation. Until now, hydraulic cold drawbenchs produced by our company have been spread over many provinces in China, with a number of more than 100 sets. High quality products and services make us have a good reputation among our customers.
Product Details
In the early 1990s, we produced the first hydraulic cold drawbench. Compared with the traditional chain drawbench, it has obvious advantages such as large drawing force, high working efficiency, low noise and stable operation. Until now, hydraulic cold drawbenchs produced by our company have been spread over many provinces in China, with a number of more than 100 sets. High quality products and services make us have a good reputation among our customers.
The construction forms of hydraulic cold drawbench manufactured by our company include pre-stressed frame type, fixed bed type, compound type and so on. The drawing force ranges from 50KN to 20000KN; the maximum stroke is 25m and the maximum drawing speed is 30m/min. Hydraulic cold drawbenchs are suitable for the cold drawing for tubes, rods, bars in ferrous and non-ferrous metal materials, which are widely used in the cold drawing processing for carbon steel pipe, stainless steel tube, aluminum tube, aluminum rod, copper pipe, copper rod, copper bar, etc.
Model | Max. Drawing Force(KN) | Max.OD(mm) | Stroke(mm) |
YLB 50 | 500 | 89 | 10000 |
YLB100 | 1000 | 127 | 10000 |
YLB150 | 1500 | 168 | 10000 |
YLB200 | 2000 | 219 | 10000 |
YLB300 | 3000 | 351 | 12000 |
YLB500 | 5000 | 426 | 12000 |
YLB630 | 6300 | 529 | 12000 |
YLB1000 | 10000 | 630 | 12000 |
YLB 1500 | 15000 | 710 | 12000 |
YLB 2000 | 20000 | 900 | 12000 |
All models can be customized according to customers' requirements. |
